Brand: ZJWZJH
Color: Red 4 Pole
Features:
- [ 32A, DC 1500V; PV2 ] Ui: 1500V DC; Ith: 32 Amp; Uimp: 8000V; Icw: 1KA, 1S. PV2 rating, supports frequent switching
- [ 4-Pole ] Red handle, 4-Pole. The PV switch disconnector has 4 separate circuits of 32 amps each, 64A max. for 2 circuits for high work safety. And the solar disconnect switch has a padlocked handle that locks in the closed position and is tamper-resistant.
- [ 2 String 2 in 2 out ] ndependently isolates 2 PV strings (each with +/- poles), perfectly matching common 2-string rooftop solar systems. No need to damagethe box, mountingholes are already cutout. Double hole cable connector, suitable for 6-8mm connecting wires
- [ RELIABLE & DURABLE ] ZJWZJH's solar pv isolator switches are made of high quality PC material, It has the advantages of UV-proof, flame retardant, water and dust prevention (IP66), Cold and heat protection (-40โ~+185โ), environmental aging and corrosion resistance, and long service life, perfect for outdoor and indoor installation.
- [ WIDE APPLICATION ] Whether it's solar panels, solar charge controllers, solar inverters or solar modules, you can integrate our DC disconnect switches to connect and control them all.

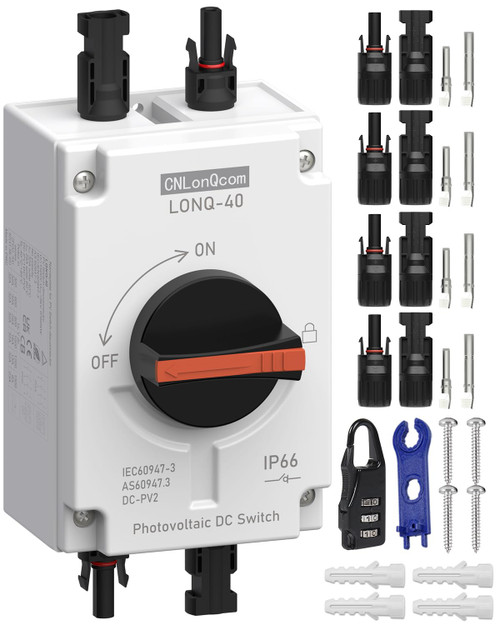

- [ Package ] 1 X Disconnector Switch; 6 X Screw; 2 sets of Wall Mounting Kit; 5 sets of connection terminals; 4 x Cable Connectors. The solar disconnect switch has passed CE, TUV, CB, RCM and RoHS certifications
