Brand: Nixesky
Features:
- Compatible Cable : Compatible with PV cables with different insulation diameters (2.5m㎡~6m㎡/14AWG ~10AWG).
- Premium Material : Made of PPO material, conductor pin is tin plated copper. PPO material with excellent aging resistance and UV endurance, can resist severe weather such as heavy rain, snowstorm or heat for a long time.
- Rated voltage : 1000V DC; Rated Current:30A; These solar connectors' degree of waterproof is IP67 and design with sealing ring for dust resistance.
- Application : These solar connectors are designed for connecting photovoltaic solar systems to complete a solar panel (PV) array, typically in parallel applications

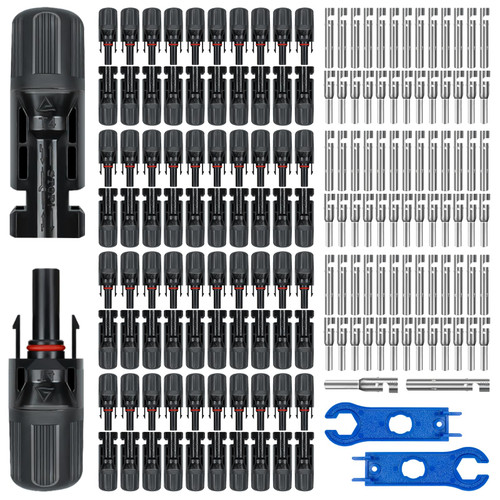

- Package Included : 50 pairs solar panel connectors Male & Female + 50pairs solar connector pins + 2 pieces spanners.
Details: Nixesky solar Connectors Male/Female, IP67 1000V Waterproof Solar Panel Cable Connectors (50 Pairs Solar connectors with 2 Pack Spanner) Material: PPO + Copper Rated current: 30A (2.5/4/6mm²) Adapter Wire: OD 5mm-7mm Rated voltage: 1000V DC Connector contact resistance:≤0.5mΩ Degree of waterproof: IP67 Flammability rating: UL94-V0 Insertion force: less or equal to 50N Withdrawal force: over or equal to 50N Operating temperature range: -40℉~ +221℉ Package Included: 50 Pairs x Solar Connectors (Male & Female) 50 pairs x Solar Connector Pins 2 Pieces x Spanner
